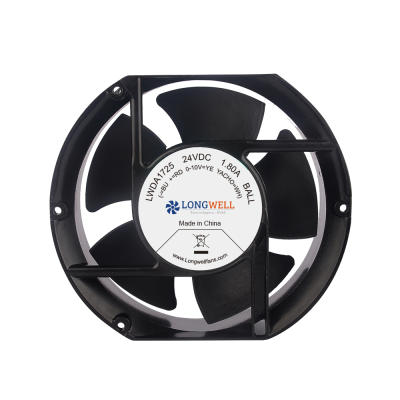

型号：LWAD17251
材质：塑料
电压：12-48V
输入功率：24-108W
转速：2500-6000RPM
风量：5.19-12.91m³/min
产品特性：DC直流电机；高效率、低噪音、易安装；性能稳定、生命周期长；低压启动、过流保护；支持定制
|
型号-朗伟 |
电压 |
电流 |
风速 |
风量 |
静压 |
噪音 |
重量 |
曲线 |
|||
|
V |
A |
RPM |
CFM |
m³/min |
mm-H20 |
Inch–H20 |
Pa |
dBA |
g |
||
|
LWAD17251LX-01 |
12 |
5 |
4500 |
329.9 |
9.34 |
34.7 |
1.37 |
340 |
63.7 |
660g |
1 |
|
LWAD17251LX-02 |
12 |
3.5 |
4000 |
293.3 |
8.3 |
27.4 |
1.08 |
269 |
61.1 |
660g |
2 |
|
LWAD17251LH-03 |
12 |
3 |
3500 |
256.6 |
7.27 |
21 |
0.83 |
206 |
58.2 |
660g |
3 |
|
LWAD17251LM-04 |
12 |
2.5 |
3000 |
220 |
6.23 |
15.4 |
0.61 |
151 |
54.9 |
660g |
4 |
|
LWAD17251LL-05 |
12 |
2 |
2500 |
183.3 |
5.19 |
10.7 |
0.42 |
105 |
50.9 |
660g |
5 |
|
LWAD17251MX-01 |
24 |
4.5 |
4500 |
329.9 |
9.34 |
34.7 |
1.37 |
340 |
63.7 |
660g |
1 |
|
LWAD17251MX-02 |
24 |
3.5 |
4000 |
293.3 |
8.3 |
27.4 |
1.08 |
269 |
61.1 |
660g |
2 |
|
LWAD17251MH-03 |
24 |
2.5 |
3500 |
256.6 |
7.27 |
21 |
0.83 |
206 |
58.2 |
660g |
3 |
|
LWAD17251MM-04 |
24 |
2 |
3000 |
220 |
6.23 |
15.4 |
0.61 |
151 |
54.9 |
660g |
4 |
|
LWAD17251ML-05 |
24 |
1.5 |
2500 |
183.3 |
5.19 |
10.7 |
0.42 |
105 |
50.9 |
660g |
5 |
|
LWAD17251HX-01 |
48 |
2 |
4500 |
329.9 |
9.34 |
34.7 |
1.37 |
340 |
63.7 |
660g |
1 |
|
LWAD17251HX-02 |
48 |
1.6 |
4000 |
293.3 |
8.3 |
27.4 |
1.08 |
269 |
61.1 |
660g |
2 |
|
LWAD17251HH-03 |
48 |
1.2 |
3500 |
256.6 |
7.27 |
21 |
0.83 |
206 |
58.2 |
660g |
3 |
|
LWAD17251HM-04 |
48 |
1 |
3000 |
220 |
6.23 |
15.4 |
0.61 |
151 |
54.9 |
660g |
4 |
|
LWAD17251HL-05 |
48 |
0.6 |
2500 |
183.3 |
5.19 |
10.7 |
0.42 |
105 |
50.9 |
660g |
5 |
