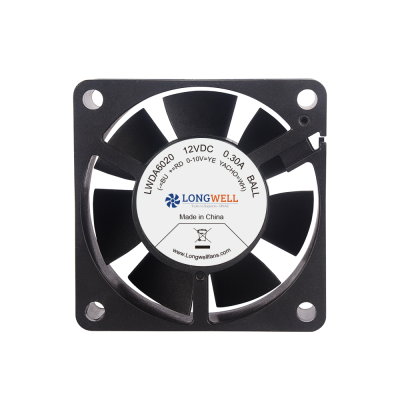

型号：LWAD6020
材质：塑料
电压：12-48V
输入功率：2.4-7.68W
转速：4000-8000RPM
风量：0.45-0.95m³/min
产品特性：DC直流电机；高效率、低噪音、易安装；性能稳定、生命周期长；低压启动、过流保护；支持定制
|
型号-朗伟 |
电压 |
电流 |
风速 |
风量 |
静压 |
噪音 |
重量 |
曲线 |
|||
|
V |
A |
RPM |
CFM |
m³/min |
mm-H20 |
Inch–H20 |
Pa |
dBA |
g |
||
|
LWAD6020LX-01 |
12 |
0.55 |
8000 |
33.7 |
0.95 |
13.6 |
0.54 |
133 |
49.9 |
52g |
1 |
|
LWAD6020LH-02 |
12 |
0.5 |
6700 |
29.5 |
0.8 |
10.4 |
0.38 |
102 |
46 |
52g |
2 |
|
LWAD6020LM-03 |
12 |
0.4 |
6000 |
25.3 |
0.72 |
7.6 |
0.3 |
75 |
43.7 |
52g |
3 |
|
LWAD6020LL-04 |
12 |
0.3 |
5000 |
21.1 |
0.57 |
5.3 |
0.21 |
52 |
39.7 |
52g |
4 |
|
LWAD6020LD-05 |
12 |
0.2 |
4000 |
16.9 |
0.45 |
3.4 |
0.13 |
33 |
34.8 |
52g |
5 |
|
LWAD6020MX-01 |
24 |
0.3 |
8000 |
33.7 |
0.95 |
13.6 |
0.54 |
133 |
49.9 |
52g |
1 |
|
LWAD6020MH-02 |
24 |
0.25 |
7000 |
29.5 |
0.84 |
10.4 |
0.41 |
102 |
47 |
52g |
2 |
|
LWAD6020MM-03 |
24 |
0.2 |
6000 |
25.3 |
0.72 |
7.6 |
0.3 |
75 |
43.7 |
52g |
3 |
|
LWAD6020ML-04 |
24 |
0.15 |
5000 |
21.1 |
0.6 |
5.3 |
0.21 |
52 |
39.7 |
52g |
4 |
|
LWAD6020MD-05 |
24 |
0.1 |
4000 |
16.9 |
0.48 |
3.4 |
0.13 |
33 |
34.8 |
52g |
5 |
|
LWAD6020HX-01 |
48 |
0.16 |
8000 |
33.7 |
0.95 |
13.6 |
0.54 |
133 |
49.9 |
52g |
1 |
|
LWAD6020HH-02 |
48 |
0.14 |
7000 |
29.5 |
0.84 |
10.4 |
0.41 |
102 |
47 |
52g |
2 |
|
LWAD6020HM-03 |
48 |
0.12 |
6000 |
25.3 |
0.72 |
7.6 |
0.3 |
75 |
43.7 |
52g |
3 |
|
LWAD6020HL-04 |
48 |
0.1 |
5000 |
21.1 |
0.6 |
5.3 |
0.21 |
52 |
39.7 |
52g |
4 |
|
LWAD6020HD-05 |
48 |
0.08 |
4000 |
16.9 |
0.48 |
3.4 |
0.13 |
33 |
34.8 |
52g |
5 |
